LS-3200

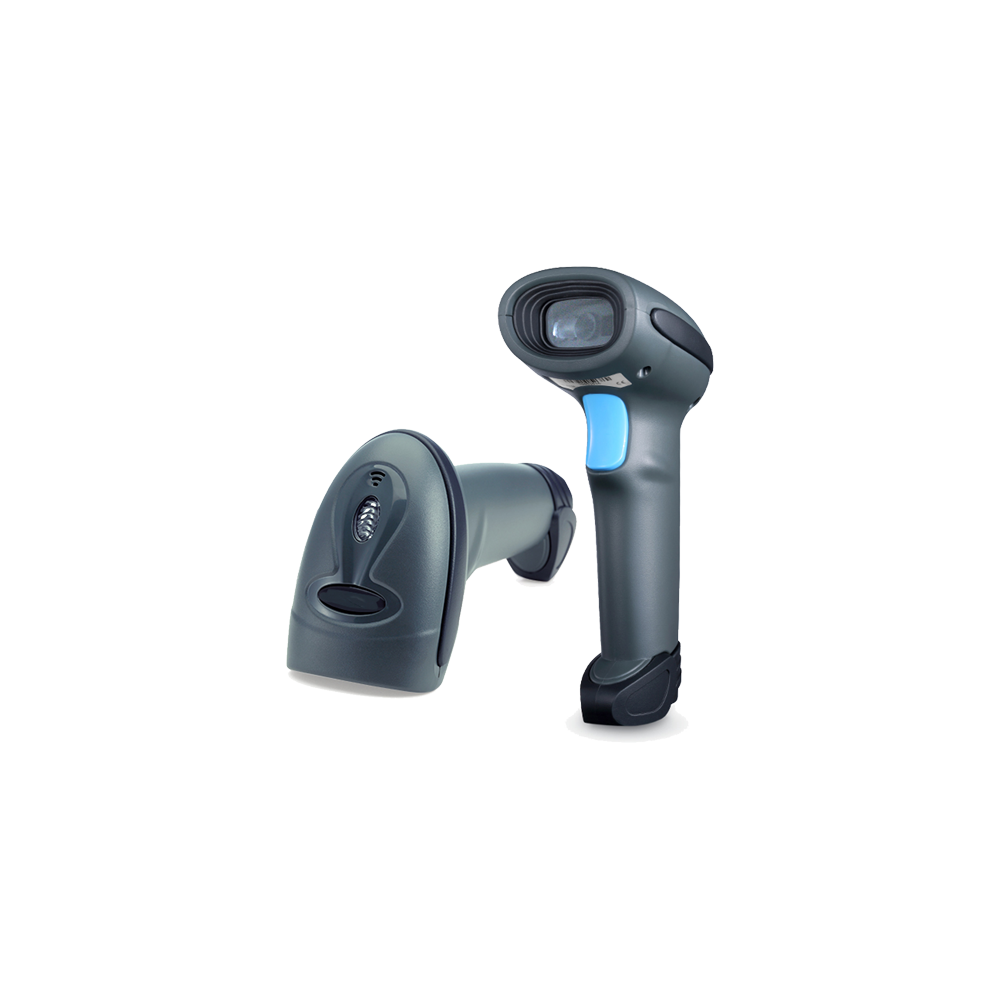

LS-3200 Product Introduction


LS-3200 is a high-performance two-dimensional image barcode scanner, which uses the cutting-edge decoding algorithm technology, can interpret a variety of complex one-dimensional and two-dimensional codes, support scanning mobile phones and computers and other screen barcodes, can quickly achieve Wechat and Alipay receiving orders, in line with ergonomic design, comfortable operation, long-time operation is not easy to fatigue, the whole machine dustproof design to meet more scene applications. Blue LED indicator and loud buzzer tone, fast feedback code reading experience, the wire is made of high and low temperature resistant material and high-quality inner copper wire, to meet a variety of service environment, longer life.

Industry Pain Points

  • Traditional manual recording and searching of courier information is time-consuming and error-prone.
  • Manual operation is easy to lead to misdelivery, omission and other problems.
  • Information update lag, affecting the courier status tracking.
  • Inventory management is chaotic, easily lead to backlog or shortage.



Efficient Reading Ability

The code reading ability is strong, the robustness is good, and the DPM with good marks can be read efficiently.
The processor has a strong computing power, can run a more powerful algorithm model, and has a good ability to read inkjet difficult codes.

Product characteristics

  • Ergonomic design, comfortable operation, not easy to fatigue for a long time.
  • Full dustproof design of the whole machine to meet more scene applications.
  • Ultra-long transmission distance, open transmission distance of 80-100 meters.
  • Using the cutting-edge decoding algorithm technology, it can interpret all kinds of complex one-dimensional code, two-dimensional code and screen code.
  • Support scanning mobile phones and computers and other screen barcode, you can quickly achieve Wechat and Alipay receipt.
  • There are three transmission modes: online direct transmission, automatic storage and offline inventory, with a storage capacity of 512000 characters.
  • 2.4G and Bluetooth are optional to meet the needs of more users.
  • Red and blue LED indicator and buzzer and motor vibration prompt, quick feedback experience.
  • Large capacity battery, which can be used normally for a whole day.
High Speed
Scanning
Type
Super
performance
Multi-Angle
One-dimensional
Bar Code Scanning
2D Bar Code
Scanning
High Speed
Scanning
Type
Super
performance
Multi-Angle
One-dimensional
Bar Code Scanning
2D Bar Code
Scanning

Product Parameters

Image: (pixels) 640 pixels (H) * 480 pixels (V).
Light sources: Aiming:617 nm LED;illumination:6500K LED.
Scanning distance: 25-200mm@UPC/EAN 13mil PCS=90%;20-300mm@QR 20mil PCS=100%.
Scanning angle: elevation 65 °/ rotation 30 °/ deflection 60 °.
Field of view angle: horizontal 34 °, vertical 28 °.
Reading accuracy: ≥ 4mil.
Recognition code system: 2D:QR Code,Data Matrix,PDF417,Aztec,Maxicode, Han Xin code.
1D UPC-E,EAN-8&EAN-13,JAN-8 UPC hand EANGUPC hand Jan Magi UPC MI A & UPC-E,EAN-8&EAN-13,JAN-8 & UPC 39 .
ASCII), Codabar (NW7); Code 128 & EAN 128 Code 93 of 5 (ITF), Addendum 2 of 5. Matrix 2 of 5 Standard 25 Magi IATA Code,
Plessey,MSI/Plessy,China Postal Code,Code 32 (Italian. Pharmacode), GS1-DataBar TM (RSS),
(RSS 14pm RSS house limited), AIM-128.
Printing contrast: ≥ 25%.
Indication mode: blue LED light, buzzer.
Communication interface: TTL-232, USB (HID-KBW, virtual serial port).
Scan frequency: 300 times per second.
Trigger mode: button trigger, inductive reading, continuous reading.
Input voltage: 5VDC ±10%.
Working current: 170mA.
Appearance size: 173mm*67mm*94mm (length * width * height).
Weight: 220 grams (including data lines).
Shell material: flame retardant material
IP grade: IP54, falling height up to 5 meters.
Ambient brightness: 0~100000Lux.
Working temperature: -20 ℃ ~ 60 ℃ .
Storage temperature: -40 ℃  ~ 70 ℃ .
Relative humidity: 5%~95%RH.





Application scenarios

Store Management
Logistics Industry
Retail Trade
Express Logistics
Store Management
Logistics Industry
Retail Trade
Express Logistics
