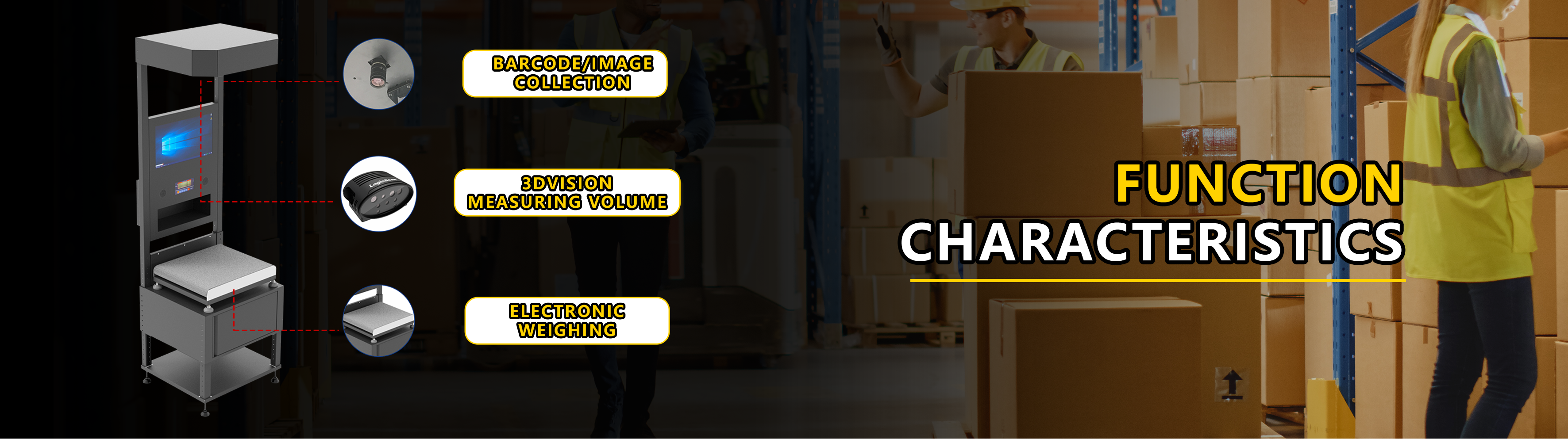

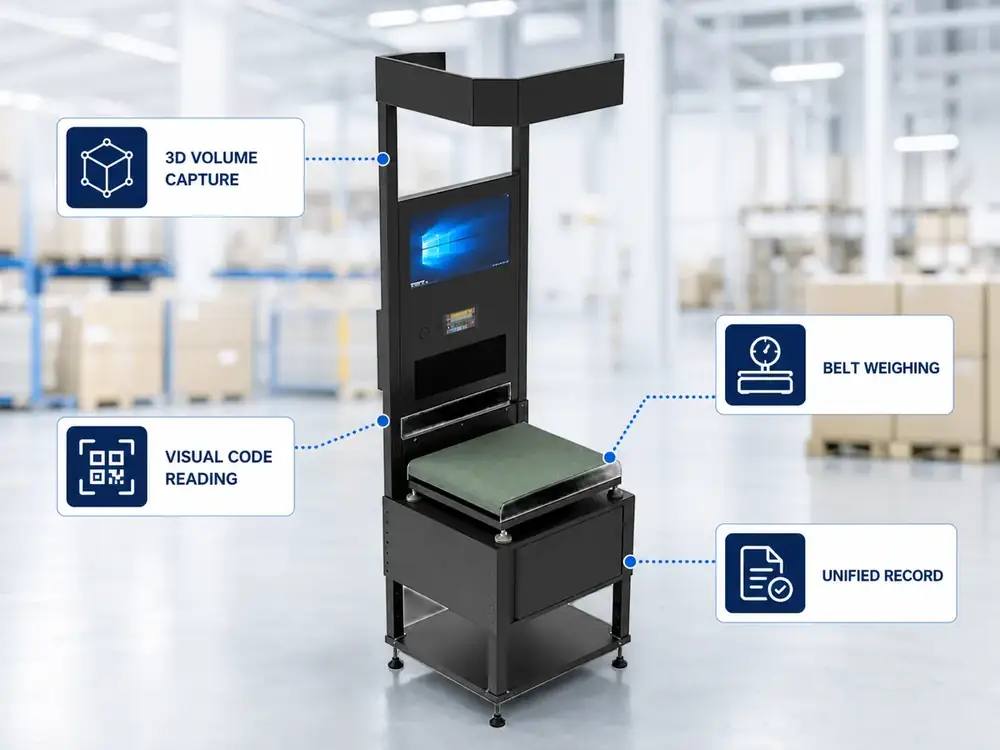

This is a volume measurement equipment with a belt scale. It combines infrared detection depth, three-dimensional vision technology and proprietary algorithms, including volume measurement, visual code reading, weighing and other modules. The measurement accuracy reaches ± 3 mm and the weighing accuracy reaches ± 5 g, which saves 60% time and reduces operating costs by 80%.
Information superposition order number overlay
visual traceability order query parcel query video traceability
Perfectly solving all problems by one
action in one second
| Measuring technology: 3D binocular vision technology |
| Measuring range: 20*20*10~600*600*600mm |
| Installation height: 1.5 meters |
| Measuring accuracy: 5mm |
| Measuring time: <1S |
| Automatic scanning: intelligent/industrial camera code reading |
| Can read: one or two-dimensional code |
| Barcode accuracy: >10mil (0.25mm) |
| Upper computer: split or integrated (standard or optional) |
| Electronic scale: desktop scale or customized according to user needs |
| Electronic scale accuracy: t50g 1/3000 |
| Printer: optional module (optional expansion docking) |
| Manual scanning: optional module (wired or wireless scanner) |
| Peripheral accessories: workbench (optional components) |
| Data interface: customized development of docking program according to needs |

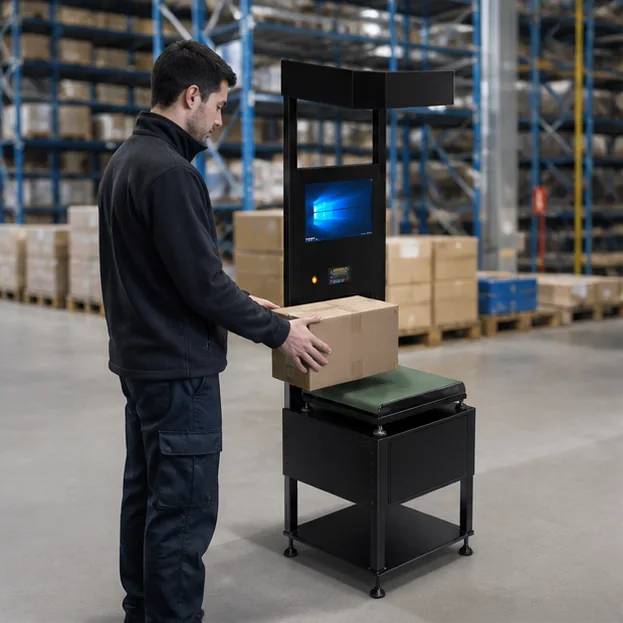

| Application industry: logistics express, cross-border e-commerce, chain supermarkets |
