CLD-7200

Name: CLD-7200
SKU: 18071275042502680655842210
Availability: InStock

CLD-7200 Laser DWS Machine

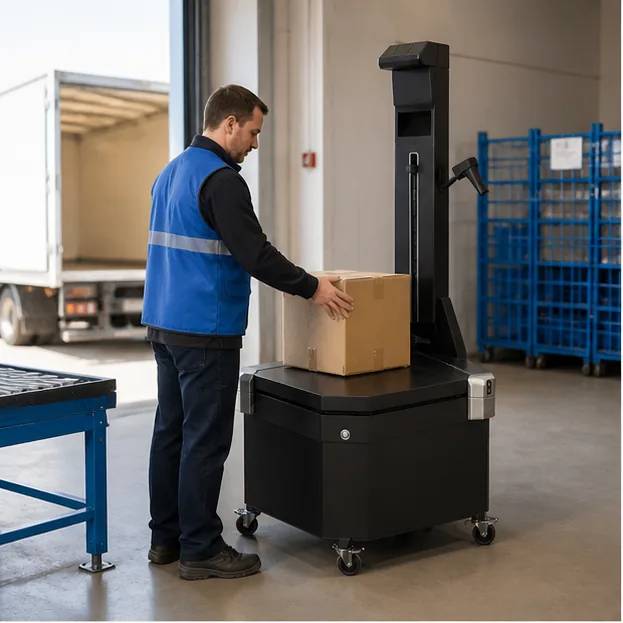

CLD-7200 series is a product that integrates the volume and weight of regular and irregular goods, which is not affected by the material, shape and light of the object. It is mainly used in express delivery, e-commerce logistics, etc. It can quickly measure the volume, weight, barcode, picture and other information of the goods and upload them to the backend system in real time.

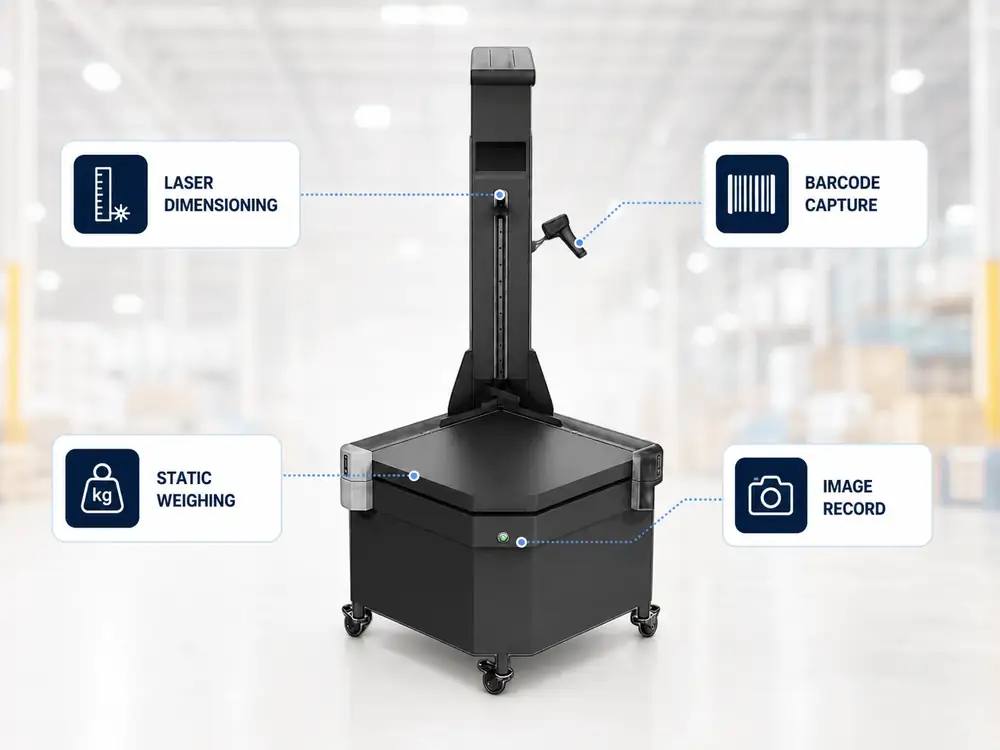

Personalized dimensioning, weighing, and barcode scanning
Connected with customer WMS system
Achieved the highest standard accuracy with ±3mm
Not affected by the material, shape and light of the measured object
Mature experience in customer scenario application
Over 20 national after-sales service outlets

Reduce time cost

High precision scanning

Unaffected by light

Improve efficiency

Reduce time cost

High precision scanning

Unaffected by light

Improve efficiency

Product Parameters

Barcode reader: hand-held scanner

Application software: CLD logistics management system

Weighing platform size: 850 × 850 mm

Maximum package size: 600 x 600 × 800 mm (length × width × height)

Minimum package size: 10 × 10 × 10 mm (length × width × height)

Weighing accuracy: ±10g

Measurement accuracy: ±3mm (standard box items), ±5 mm (irregular items)

Weighing range: 40g-50kg

Handling capacity: up to 1,000 - 1,200 parcels per hour

Power: 1.5KW

Power supply: 220V

Software interface: http, tcp, 485

Weighing mode: static weighing

Picture collection: yes

Techsorta IoT as the volume of China A leader in measurement, specializing in high-precision volume measurement technology, using infrared detection depth, 3D vision imaging technology and patented algorithms, measurement accuracy can reach ±5mm, and quickly and accurately Measure package volume, weight, bar code, image and other information, synchronize data to user systems, and archive photos of objects for traceability management. The application scenarios are flexible and convenient, which can greatly improve user productivity, save labor costs, and compensate for loss of revenue.
