In actual production line and warehousing operation scenarios, gun-type bar code scanners are not always the best choice, especially for mobile workers. Each time they pick up, scan, and then put down, the handheld scanner will take 5 to 8 seconds. Time consumes a lot of time and labor for workflows that require high-frequency scanning.
This plug-and-play, low-power wearable scanner uses a 0.96-inch OLED screen to display sound and light, can read 1D/2D barcodes at a distance of 3-150cm, cross aiming, and Bluetooth Low Power (BLE) provides HID/SPP connection, uses a pure cobalt high-density battery, and supports more than 7500 scans once in 1 second.
| Memory: FLASH/16MB |
| Scanning engine: support for 1D/2D |
| Scan mode: support touch scan mode |
| Scan depth of field: medium and long reach 3-150cm |
| standard pitch 3-45cm |
| Appearance size: 35mm long * 26mm wide * high 20mm |
| Weight: 19g |
| Battery life: continuous working time > 12 hours |
| (5 seconds interval), standby about 480 hours |
| Button service life: 10 million times |
| External interface: dot matrix interface, |
| support seat charging data communication charging |
| Power adapter: input: AC100-240V-50/60HZO5A |
| Output: DC3.7V-2.5A |
| Prompt mode: buzzer, LED indicator, vibration |
| Battery type: 195mAH explosion-proof battery |
| Charging current: minimum 0.2C |
| Number of charge and discharge cycles: ≥ 400times |
| Scan times: 1 second-7500 times |
| Buzzer: 1 can choose to turn off |
| Vibrating motor: 1 can choose to turn off |
| Remote push updates: online updates are supported |
| Lighting: red LED |
| Field of view angle: horizontal 42 °, vertical 28 ° |

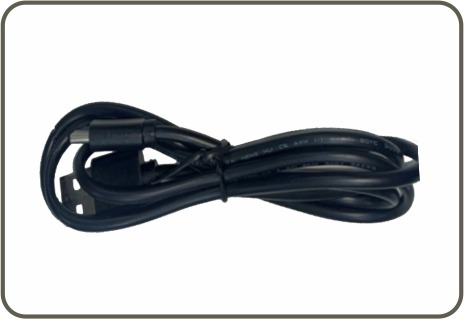

| Standard: Bluetooth communication charging base, charger, USB cable, manual, after-sales warranty card, certificate. |

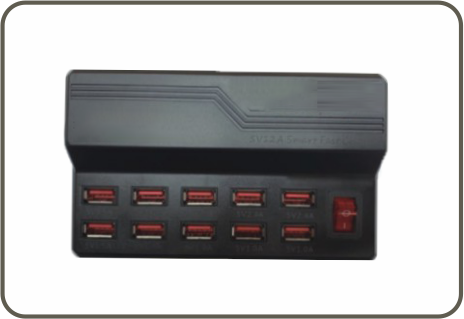

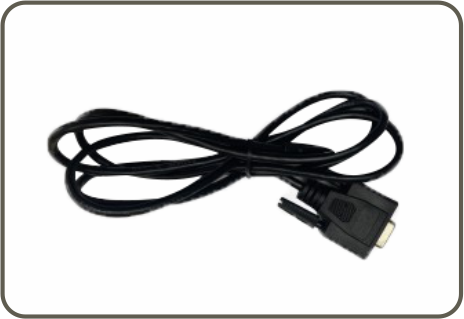

| Optional: connect USB charging plug, one-to-many gateway, serial communication power supply line. |
| Data acquisition / wireless communication |
| 1D/2D scan barcode density: > 5mil scan distance: 3cm-150cm |
| (depending on different barcode density and code system) |
| decoding ability: UPC/EAN、Code128、Code39、Code93、 |
| Code11、Interleaved2of5、Discrete2of5、Chinese2of5、 |
| Codabar、MSI、RSS；PDF417、MicroPDF417 、 |
| Composite、RSS、TLC-39、Datamatrix、QRcode、 |
| MicroQRcode、Aztec、 |
| PostalCodes: USPostNet；USPlanet；UKPostal；JapanPostalDutchPostal（KIX） |
| Bluetooth: BLE，Bluetooth 5.1protocol, support HID/SPP, support OTA upgrade |
| Communication distance: 40 meters (open) |
| Environmental characteristics / level of protection |
| Working temperature: -5 ℃ ~ 50 ℃ |
| Storage temperature: -10 ℃ ~ 80 ℃ |
| Relative humidity: 5%-95%RH |
| Industrial protection grade: IP 6x |
| Anti-rolling tea strength: can withstand |
| 1500 times of 0.5m rolling |
